How to Install Mikrotik via Qemu

• THE PURPOSE

-To know the steps to make qemu disk image in GNS3
-To find out how to use qemu in GNS3
-To find out how to install MikroTik with qemu

• THE BASIC CONCEPTS

It has been many are installing the MikroTik use qemu in GNS3. Because, GNS3 is easier to use and can create in order to better understand the network topology. In GNS3, there is a software called QEMU. So far, we make use of Virtual Box Virtualization, VMWare, etc. Qemu can for virtualization but is usually used in MikroTik qemu, Juniper, etc. To create a disk image MikroTik, use the command CMD. After creating a disk image MikroTik, then install MikroTik use qemu. To install MikroTik also use the cmd command. After that, the image Mikrotik must be deployed to GNS3 and to run it using GNS3.

• CONFIGURATION

Here are the steps to make qemu MikroTik in GNS3.

Before opening cmd, copy ISO MikroTik prior to installation GNS3 location and go to the folder qemu version 1.6.0. Run cmd to run the Administrator

Go to programs GNS3 installation and entry into qemu version 1.6.0. Then create a disk image MikroTik. After that, run a disk image that has been created and includes MikroTik ISO that are copied

 After that, we select what features you want to install. To select all press "a" and if you want to choose a package, press "space". If you have selected a package you want to install, press "i". If you really want to install press "y". Appears warnings All data on the disk will be erase all then press "y". In summary is "aiyy" If all the packages you want installed.

Open GNS3 and click on "Edit > Preferences"

Click the Qemu VMs and click new to deploying the image previously created. Then fill qemu name then click "Next"

Use qemu 32-bit system, because previously when we use 32 bits. Then "Next"

After that, input the image has been created and installed. Then "Finish"

Select the icon off mikrotik in all device

Then try running whether successful or not

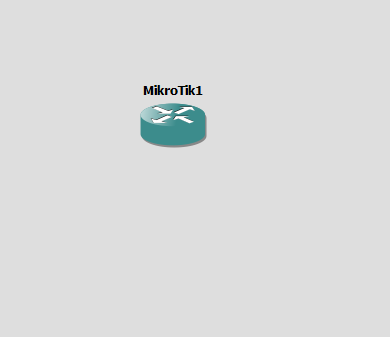

Right click in icon mikrotik and select change symbol

select icon router and select ok

And tadhaaaa we are finish instal mikrotik in qemu

Thank you
